Summary
With 16 years of expertise in progressive tool design for automotive, rail, aerospace, and heavy engineering sectors, specializing in advanced CAD/CAM-driven design, process optimization, and simulation to deliver high-precision, cost-efficient tooling solutions that improve production speed, reduce scrap, and ensure consistent part quality for complex manufacturing demands.
Detailed capabilities of Progressive Tool Design include

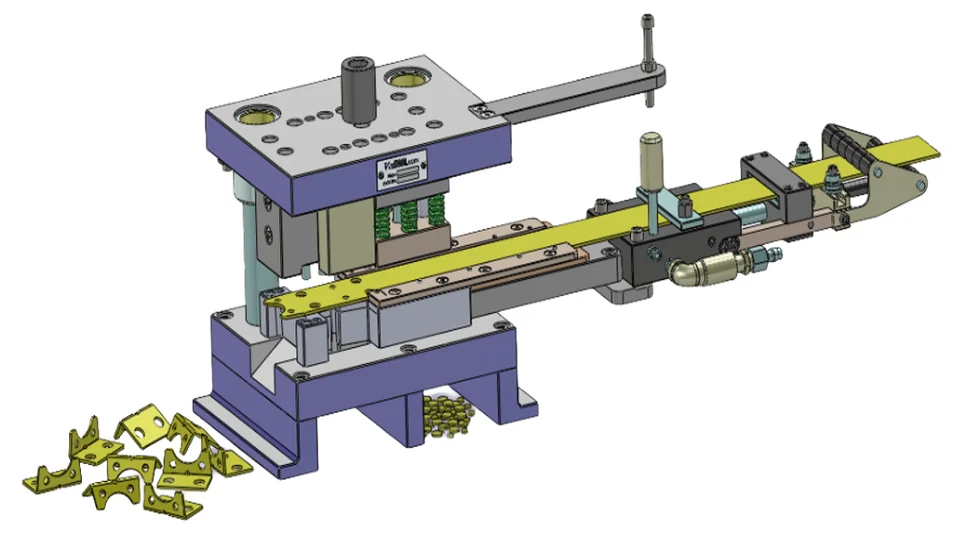

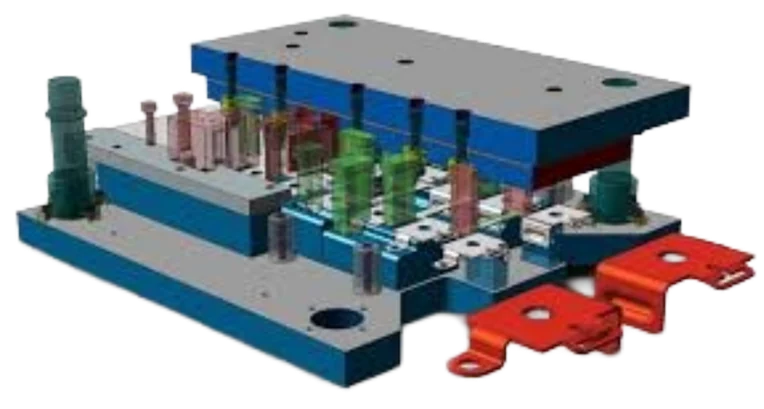

- Expertise in designing multi-stage progressive dies for high-volume production, executing sequential operations like cutting, bending, coining, and forming in a single press stroke.
- Utilize advanced CAD/CAM software and 3D simulations to optimize die geometry, predict material behaviors such as spring back, and minimize defects including thinning and distortion.
- Apply laser cutting for precise, complex components with tight tolerances, reducing manual rework.

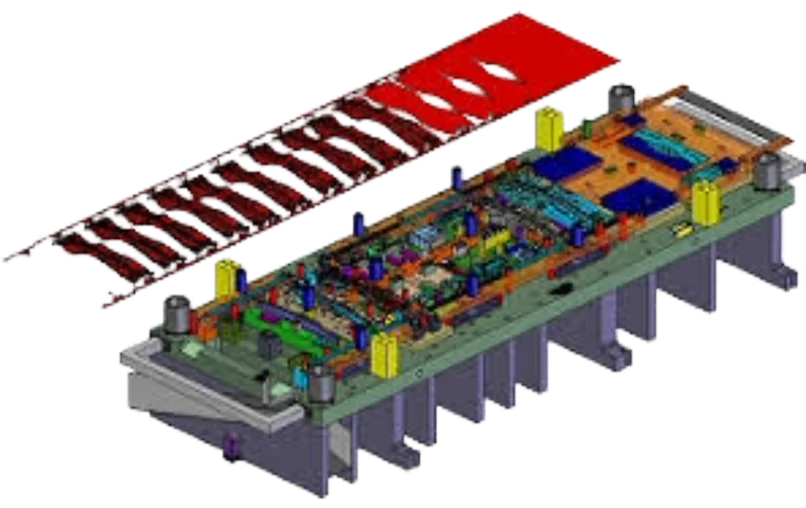

- Key design considerations encompass durable tool material selection, accurate tolerance control, progressive layout sequencing for material optimization, and punch staggering to minimize press force requirements.
- Integrate FEA simulations for structural integrity, optimal force distribution, and minimal tolerance stack-up across stations. Develop modular components for easier maintenance, faster changeovers, and enhanced production flexibility.
- Incorporate predictive maintenance using data analytics to monitor die wear and extend tool longevity.
- Coordinate with manufacturing teams for prototyping, testing, and iterative refinement, ensuring workflow efficiency, scrap reduction, and compliance with automotive, aerospace, and heavy engineering standards.
- Design considerations across operations include selecting durable tool materials, accurate tolerance control, progressive layout sequencing to optimize material use, and minimizing press force requirements through techniques like punch staggering. Integration of CAD/CAM and FEA simulations optimizes die geometry, predicts material behavior, and ensures high repeatability and precision in mass production.

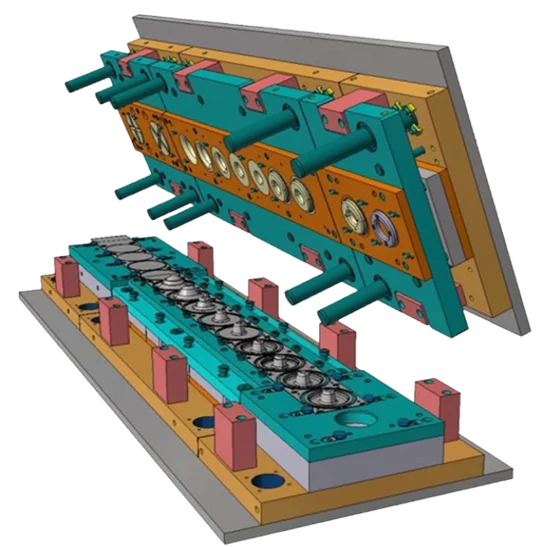

- Each station is designed considering precise tool clearance, material flow, minimizing cumulative tolerance stack-up, and optimizing press tonnage. Strategic sequencing ensures smooth transition between operations, reducing stress and deformation while maintaining high production speed and repeatability.
- By combining analytical calculations, CAE simulations, and practical testing, the die sequence can be reliably validated for optimal performance and longevity.
- These capabilities deliver cost-effective, repeatable mass production with superior precision and quality.
Progressive Dies
Multi-stage die design for cutting, bending, coining, forming, and reliable high-volume production.
Optimization
CAD/CAM, FEA, springback control, material flow, punch staggering, and scrap reduction strategies.
Manufacturing
Prototyping, testing, maintenance planning, modular tooling, repeatability, and cost-effective production.
Need progressive tool design support?
Reach out for multi-stage die design, CAD/CAM development, CAE validation, prototyping, and production-focused tooling solutions.
